DN15-DN100 Mechanical Indicator Steam Metal Tube Rotameter Variable
Area Sewage Chlorine Oxygen Nitrogen Gas
Description
In today's era of transition from the Internet to the Internet of
Things, industry has also undergone rapid and fundamental changes.
Before Industry 4.0, all innovations were aimed at reducing costs
through economies of scale and improving productivity. In the
future, the secret to industrial success lies in how to improve
productivity while shortening the product cycle from "design" to
"marketing", and how to meet more complex and personalized product
needs? Thereby completing the transformation from "product
manufacturing" to "intelligent product manufacturing"; for example:
interconnection of production equipment, transparent and visible
control processes, flexible and changeable processes, rapid
switching of new products, multi-product formula management,
product quality traceability, and planned production scheduling.
wait.
The KTR550-F flow totalizer receives the pulse signal from the flow
meter, and can display information such as instantaneous flow,
batch setting value, and cumulative total through a 2X16-digit
character LCD with backlight. The display effect is clear and
intuitive.
Through the combination of rear DIP switch settings, it can be
compatible with the input of signals such as voltage pulses,
current pulses, OC gates, reed switches, high-resistance coils,
low-resistance coils, NAMUR explosion-proof proximity switches,
etc., and can be used with most instruments and sensors. , the
application range is quite broad. Isolated 4-20mA current signal
transmission output.
specification
field:
Used in conjunction with a flow meter with pulse output, it is
suitable for applications that require volume accumulation, such as
oil depots, terminals, chemical industry, water treatment and other
industries.
1. In addition to the millivolt signal input of the selected coil,
the instrument has an auxiliary power output (12VDC/100m A) and the
power supply has a short-circuit protection function.
2. It is very convenient to set various parameters through the
panel buttons. Including instantaneous flow unit, cumulative amount
unit, instantaneous flow time unit, etc.
3. The instrument has pulse equivalent output, and the output form
is open-collector output (optocoupler isolation output). The pulse
width of the pulse equivalent output is adjustable.
4. An external totalizer reset button can be connected, through
which the totalizer displayed on the screen can be cleared. The
cumulative total cannot be cleared. Only by entering the flow
setting menu can the cumulative total be cleared.
5. Complete diagnostic functions make the instrument easier to use
and maintain.
6. The instrument has a power-off protection function, no backup
power supply is needed, and the data is saved for more than 10
years.
Basic error of cumulative flow value | ±1digit (a value expressed in one word) | Dimensions | 9 6 (length) X 4 8 (width) X 1 2 0 (height) |
Basic error of instantaneous flow signal | ±0.2%R | Hole size | 9 2 (length) X 4 4 (width) |
Installation method | Panel mounted | Signal input range | 0-5000Hz |
show | Two lines of 16 characters LCD display with LED backlight | signal type | Voltage pulse, current pulse, OC gate, dry tube, high resistance
coil, low resistance coil, NAMUR coal prevention |
Supply voltage | 100-220VAC |
| Proximity switch |
Operating temperature | 0-60℃ | Flow coefficient range | 0.0100-9999999.9999 (number of pulses per unit flow) |
Storage temperature | -20-70℃ | Pulse quantitative output | One pulse represents the minimum resolution of the totalizer
display plus one. |
Features
Better-Smart instrument direct supplier
Smart design
/ METAL STRUCTURE DESIGN
Core technology is developed and manufactured with stable system
performance.
one
easy to use
/ CASE STRUCTURE DESIGN
The new shell structure design is simple and convenient to operate,
and can be used in high temperature environments without adding
additional parts. two
Flexible and controllable
/CONICAL MEASURING TUBE
The measurement data is accurate, the measurement range is wider,
and the measurement linearity is better. three
Various connection methods
/CONNECTION METHODS
A variety of process connection methods such as flanges, clamps,
and threads are available to suit most factory application needs.
Four
Measurement of some materials optional
/ MATERIAL OPTIONAL
Stainless steel, titanium, Hastelloy, PTFE, FEP and other
materials. five

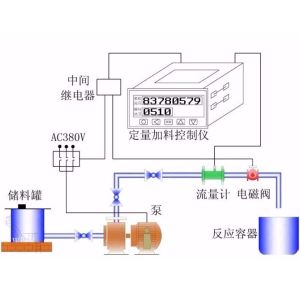

combined system
/MAGNETIC COUPLING SYSTEM
A batch control system based on a single-chip microcomputer and
composed of a variety of instruments
six
Packing & Delivery
FAQ
1. Q: What information need to be provided to choose the suitable
model?
A: Application field, Nominal pressure ,Medium & medium temperture
, Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and
flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro
Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of
payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70%
balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
