Non-Isolated RS232 Output Semiconductor Industry Meter For Flow Monitoring

Ask Lasest Price
Brand Name :	BEITE
Certification :	CE ISO
Price :	Negotiate
Payment Terms :	T/T, Western Union
Supply Ability :	3000 Piece/Pieces per Month mini flow meter
Delivery Time :	5 working days after payment
Model Number :	Ultrasonic Flow Meter

Add to Cart

Product Details
Company Profile

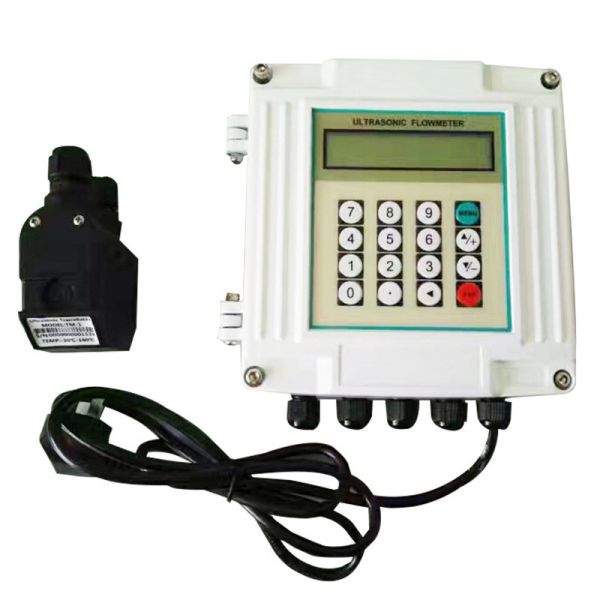

Non-Isolated RS232 Output Semiconductor Industry Meter For Flow Monitoring

Description

The handheld ultrasonic flowmeter is suitable for online calibration and patrol measurement of liquid flow in various industrial sites. It has the characteristics of high measurement accuracy, good consistency, battery power supply, simple operation, and easy portability. It is small in size and light in weight. The product has been It has been exported to Japan, South Korea, Australia, the United States and other regions, and has been widely praised.

Measurement accuracy: better than 1%
Repeatability: better than 0.2%
Working power supply: 90~230VAC (built-in nickel metal hydride rechargeable battery, can continue to work for 12 hours after charging)
Installation method: external installation, simple and convenient operation
Display: 4 lines of Chinese characters display instantaneous flow, flow rate, cumulative flow, signal status, etc. on the same screen
Signal output: non-isolated RS232 (FUJI extended protocol) 1 isolated OCT output
Other functions: The built-in data logger can record time, accumulated flow, signal status, working time, etc. The standard data interface RS232 is used for network detection or exporting recorded data for self-diagnosis, prompting whether the current working status is normal.

specification

Technical Parameters	HSModel	H M Model	Standard S1 Model	Standard M1 Model	Standard L1 Model	high temperature S1 HModel	high temperature M1HModel
Applicable pipe diameter (mm)	15～100	50～700	15～100	50～700	300～6000	15～100	50～700
Material	Aluminum alloy		ABS			Special high temperature materials
working frequency	1MHz
Common installation methods	V(N,W)	V,Z	V(N,W)	V,Z	Z	V(N,W)	V,Z
Calibration	Whole machine pairing and calibration
magnetic	YES				NO
proper temperature	0℃~70℃					0℃~160℃
Protection level	IP65
Dimensions	200×25×25	280×40×40	45×30×30	60×45×45	80×70×55	90×85×24	90×82×29
Mass (grams)	250	1080	75	250	650	94	150
Media type	Water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquids that can conduct ultrasonic waves
Medium turbidity	≤20000ppm and small bubble content
Applicable pipes	Uniform and dense pipes such as carbon steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, etc. are allowed to be lined
Pipe lining	Epoxy asphalt, rubber, mortar, polypropylene, polystyrene, bakelite, PTFE, etc.
signal cable	Standard configuration: 5 meters × 2, optional 10 meters × 2 or 15 meters × 2

Product structure

Non-Isolated RS232 Output Semiconductor Industry Meter For Flow Monitoring

Features

01.	Direct Measurement Of Gas Mass Flow
02.	Accuracy: ±1.0% F.S. Repeatability: ±0.25%F.S.
03.	Linear analogue Output Output 4-20mA, 0-5V, 0-10V etc.
04.	RS-232 Interfaces With PLC Or Workstation.
05.	RS-485 Modbus RTU (Addressable) Can Be Controlled And Displayed By Computer.
06.	No Need For Pressure & Temperature Correction.
07.	Turndown MFM 100: 1 & MFC 50: 1.
08.	Taking Capillary Heat Sensing Technology.
09.	Stability And Reliability Optimized For Long-Term Process Control.
10.	Applies MultiFlow Technology With Multi Gas And Multi Range Functionality.

Packing & Delivery
Insertion type thermal gas mass flow meter RS-485,Modbus,RTU 1

FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us in China.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal ,Western Union.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: Do you have a warranty for the Flow Meter?
A: Yes, we have the warranty of 12 months.
